- 【DUAL WALL TUBING】 CUBEFELLER Heat Shrink Tubing adopts a double-wall design and adhesive lining. The outer wall provides extremely high abrasion resistance. While heating, the adhesive line will melt, and then it will be adsorbed on the surface of the object tightly, creating waterproof and long-lasting insulation.
- 【3:1 SHRINK RATIO】 Heat shrink tubing with a 3:1 Shrink Ratio, which can shrink to 1/3 of the original diameter, forming a tighter seal and eliminating the problem of 2:1 tubing not shrinking tight enough. The shrinkage temperature is 70° to 125°.
- 【INDUSTRIAL STRENGTH】 Heat Shrink Tubing has good electrical insulation (up to 600 voltage), good tightness, and corrosion resistance, high temperature resistance. and it is also waterproof, anti-aging, tough, and not easy to break. It's also UL and CSA certified and RoHS compliant and contains no harmful chemicals to protect you and your family.
- 【VERSATILE APPLICATIONS】CUBEFELLER waterproof shrink tubing can be used in marine and automotive wiring, model building, and DIY electrical wiring projects. The application areas are very diverse, such as electrical insulation/environmental sealing to protect against moisture, fuel and chemicals,protection of surfaces against abrasion, peeling and denting.

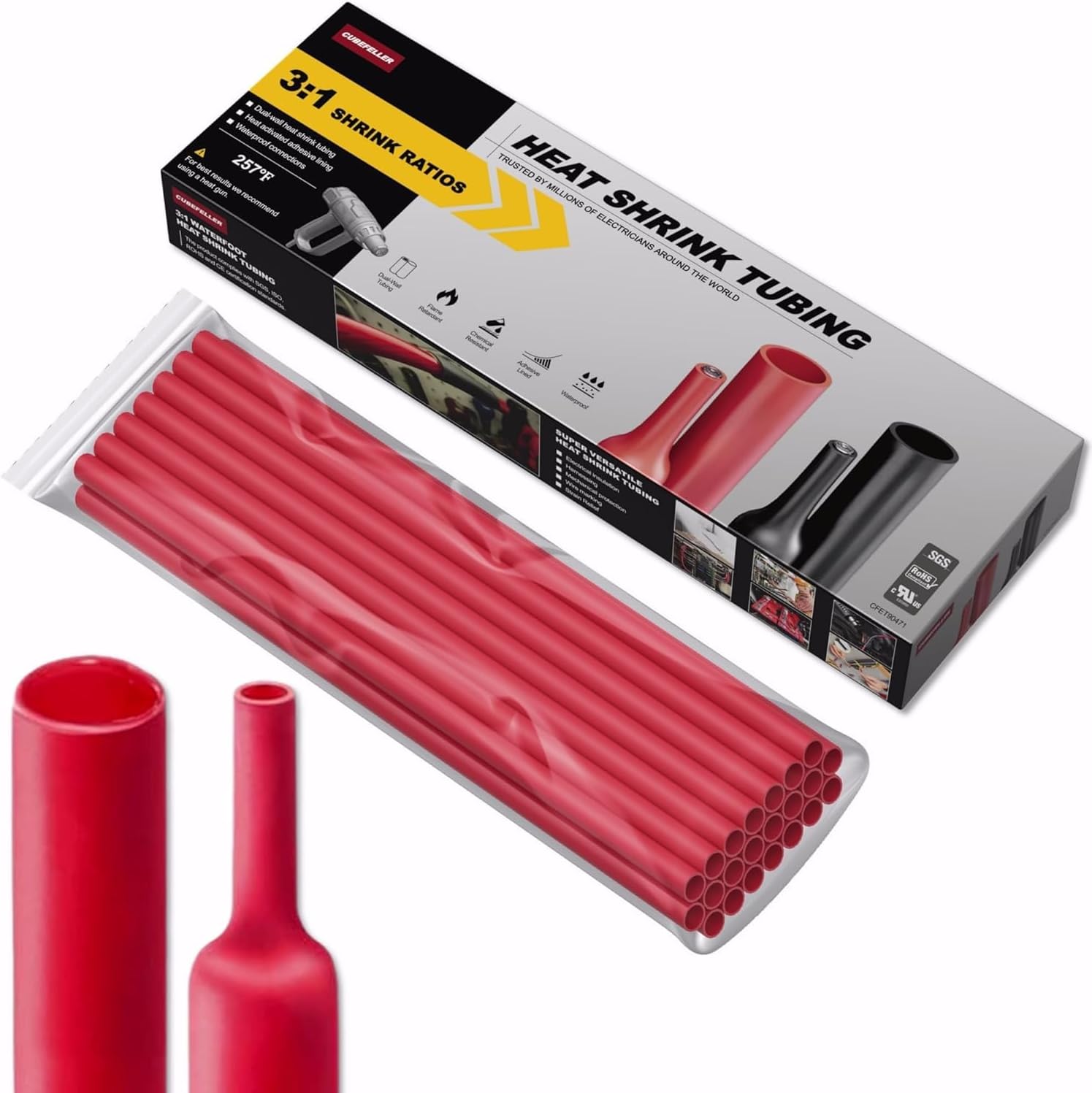

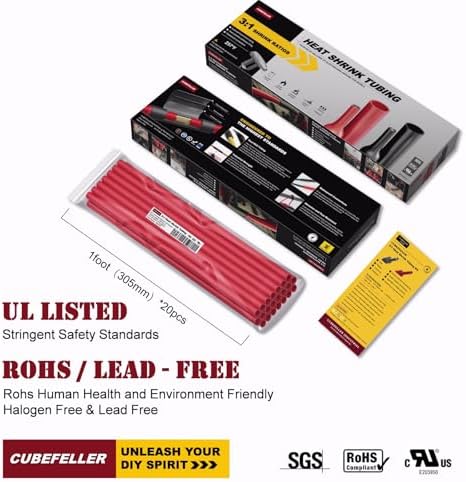

- 【 FAST & EASY USE】This kit includes 20pcs 1-feet long heat shrink tubing, which can meet your various needs. Just cut it to the length you need, slide it to the desired position, and then use a heat gun to heat it, so that the professional insulation connection is completed in a few seconds.
- CUBEFELLER Heat Shrink Tubing, trusted by millions of electricians around the world.
From the brand

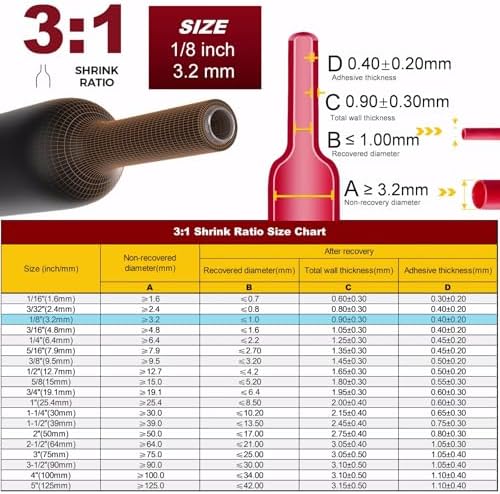

Product description PROTECTION FOR EVERY PROJECT CUBEFELLER Heat Shrink Tubing has good electrical insulation, good tightness, and corrosion resistance, high temperature resistance. IP67 WATERPROOF CONNECTIONS Connection is sealed from the element Protection against wire corrosion Can be submerged under water WATERPROOF CONNECTIONS HEAT ACTIVATED ADHESIVE 3:1 SHRINK RATIO FLAME RETARDANT PROFESSIONAL GRADE Technical Specification Heat-Shrink Tubing Type Tubing Roll / Kit Shrink Ratio 3:1 Dielectric Strength 600V/mil Shrinkage Temp 212 ℉ Operating Temperature -131℉ to +257 ℉ Full Shrinkage Temp 230 ℉（ Maximum） Specifications Met UL/SGS/RoHS Color Black / Clear / Red / White / Yellow / Green / Blue 3:1 Ratio ID 4",3",2-1/2",2",1-1/2",1-1/4",1",3/4",5/8",1/2",3/8",5/16",1/4",3/16",1/8",3/32",1/16" 3:1 Ratio Optional Length 4ft,10ft,20ft / 2.3inch, 3.3inch Tensile Strength ≥ 12Mpa Dielectric Strength 15 KV/mm SEALING CONNECTIONS Seal your quick disconnect connections to make them resistant in motorcycle and other projects. VERSATILE HEAT SHRINK TUBING 1 SEALING CONNECTIONS 2 BATTERY CABLES 3 DAMAGED CHARGERS SUPER VERSATILE HEAT SHRINK TUBING 3:1 SHRINK RATIO Adopting dual wall tubing design has the increased ability to stand up to wear and tear.3:1 SHRINK RATIO, it can shrink to 1/3 of the original diameter, the shrinkage temperature is 125°C (257°F), and the withstand voltage is 600V and high flame retardant coefficient.When the Heat-shrink tube shrinks, the glue film on the inner wall will melt and then it will be adsorbed on the surface of the object tightly so as to connect tightly, insulate, and seal off perfectly. Heat Activated Adhesive Lining This is a waterproof shrink tubing with the internal adhesive layer. When heat is applied, shrink tubing recovers and the internal adhesive layer melts. A small fillet of clear adhesive (about 1 mm wide) becomes visible at the end of the heated tubing. When cooled down, it forms a rigid seal. Heat activated glue strongly adheres to wires, terminals or any other surfaces. When adhesive flows, it pushes the air out and fills any gaps between the wire and the tubing, which makes the connection waterproof. For best results we recommend using a heat gun. Dual Wall Shrink Tubing Dual wall marine grade heat shrink tubing provides better rigidity and abrasion resistance. Dual wall tubing design has the increased ability to stand up to wear and tear. This wire heat shrink tubing is flame retardant. our tubing is built to withstand the most demanding conditions, ensuring longevity and maintaining optimal performance over time. Multiple Certifications This industrial grade heat shrinkable tubing is compliant with all relevant electrical standards such as: UL, SGS, RoHS, Reach, and ISO9001. Our Collection of Heat Shrink Tubing CUBEFELLER assorted heat shrink tubing comes in kits as well as 4/20 Ft rolls. We offer a great variety of sizes (3/32” to 2”) and colors (black, red, white, clear).
