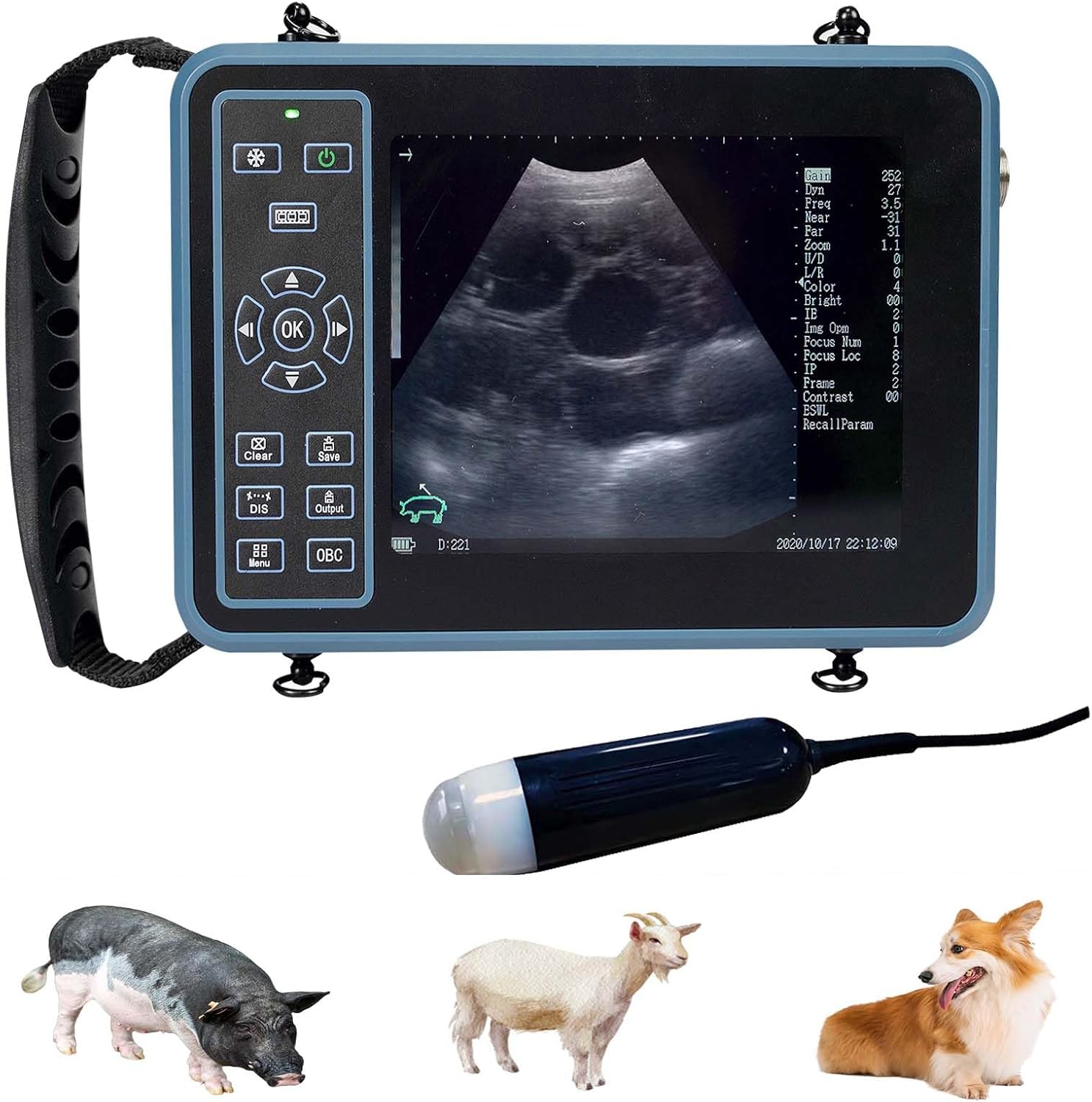

- Waterproof 3.5Mhz Mechanical Sector Probe: This probe supports multiple probe frequencies:2.5/3.0/3.5/5.0 MHz. This versatility ensures the device can be used for a wide range of diagnostic applications in different animal species.Like sheep, pigs, cats, dogs, cattle, goats and more. DAWEI S0 Provide a winter mode that enables immediate probe use in cold conditions without preheating.

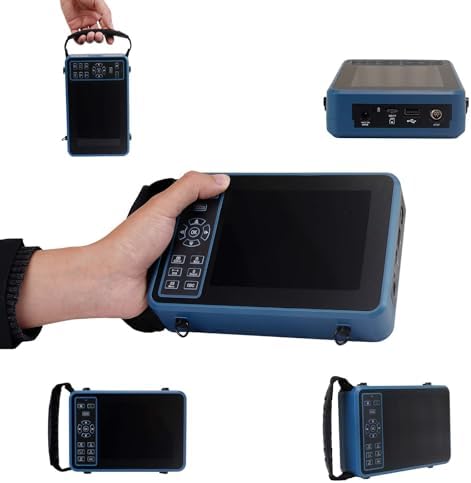

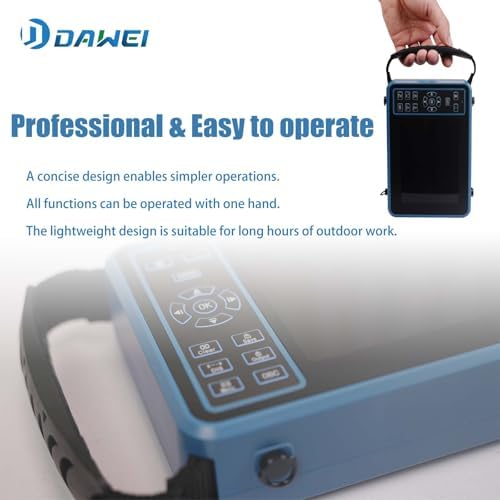

- Portable design,drop-resistant soft rubber body protecting it from falling during a diagnosis with an unexpected move.Comfortable Hand-held Imaging, 5.6 inch LED HD Display, Machine Weight was about 2.1 lbs.Easy to Carry.You can use it in farm,or at home.
- This Scanner has B,B+B,4B display mode.it support 4 levels frequency conversion:2.5/3.5/4.0/5.0MHz.DAWEI B-Ultra sound machine can be continue used for more than 4-6working hours.USB, 8GB Memory TF card ports for convenient and fast image storage and playback for more than 4000 Images.
- We provide the most professional after-sales service and product training service . Two year free warranty.What you get was not only a machine ,but a long-time training to support your work from DAWEI .
- Dawei veterinary Medical Corp.,Ltd. is a professional manufacturer of ultrasound scanners that is specialized in the development, manufacture and distribution of high quality ultrasound products.Any questions about our products,please feel free to contact us
Technical parameters 1, Description of equipment use: mainly applied to sheep, pigs and other kinds of animal abdominal organs examination. 2, display: 5.6-inch LED medical display. 4, Operating interface: Chinese/English/French/Russian/Spanish/Portuguese interface. 5, display mode: B, BB, 4B, BM, M. 6, electronic focus: four segments of electronic focus, adjustable focus position. 8, Image mirroring: left and right mirroring, up and down flip. 9, measurement: distance, perimeter, area, obstetrics. Animal measurement package: cattle (BPD, CRL, TD,), horses (GSD, BPD, CRL), pigs (GSD, LOIN) sheep (CRL, BPD, TD), dogs (HD, BD, GSD, CRL), cats (HD, BD). 10, Movie playback: 255 frames, continuous playback or frame-by-frame view. 11, permanent storage: 32G, can be stored and read. 12, gray scale: 256 levels. 13, battery capacity: 2600mAh, can continue to work for about 3 hours. 14, Total gain: 0-255, near-field gain: -31-0, far-field gain: 0-31. 15, image post-processing: 0-3. 16, Edge enhancement 0-3. 17, Brightness 0-31. 18, Image optimization 0-12. 19, Frame correlation 0-3. 20, Contrast 0-63. 21, One key parameter recovery. 22, 24 kinds of pseudo-color processing. 23, body markers ≥ 12 kinds, adjustable probe body position markers. 24, back fat measurement 2 modes: automatic measurement, manual measurement. 25, support grid adjustment, grid spacing of 2 kinds, grid color 15 kinds. 26, Dynamic 27-90. 27, 16 levels of magnification: multi-level probe depth: 3.5MHz (64-242) micro-convex (64-242) rectal (50-221) back fat (64-242) linear array (50-221) convex array rectal (64-242). 28, interface: probe interface, USB interface, 14V charging interface. 29, Power indication, and charging indicator,net weight 950g.
