- 【Function】Multifunctional digital LCD instrument, can accurately indicate the various performance parameters of the motorcycle and increase road traffic safety.

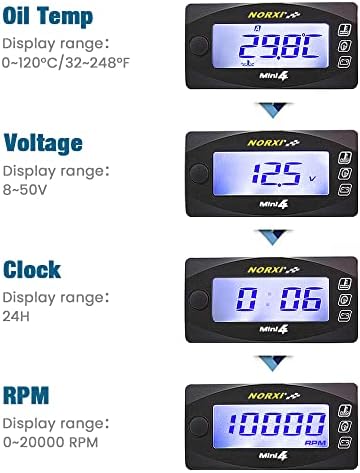

- 【Measuring range】RPM Display range: 0~20000 RPM; Voltmeter: 8~50V; Clock: 24H; Oil Temperature: 0~120°C/32~248°F(Celsius and Fahrenheit can be switched freely by press the button).
- 【Alarm function】With low voltage(Below 11.5V) and high oil temperature(exceed 120 °C) flash alarm function.
- 【Small body】Super slim square design, small and convenient. Compact design which does not get in the way even if it is installed around the meter. Paste the multimeter around dashboard with double-sided tape or use brackets to mount it around the rearview mirror.
- 【Easy Installation】Simple connection, easy to use, universally applicable to all motorcycles with 12V power supply.

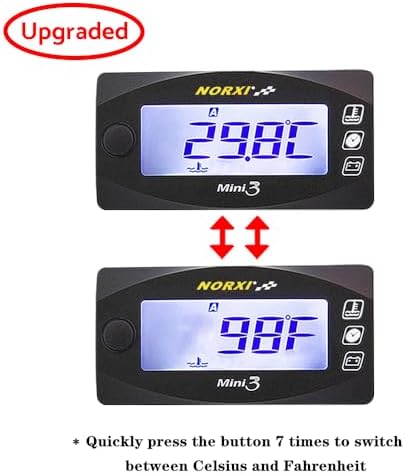

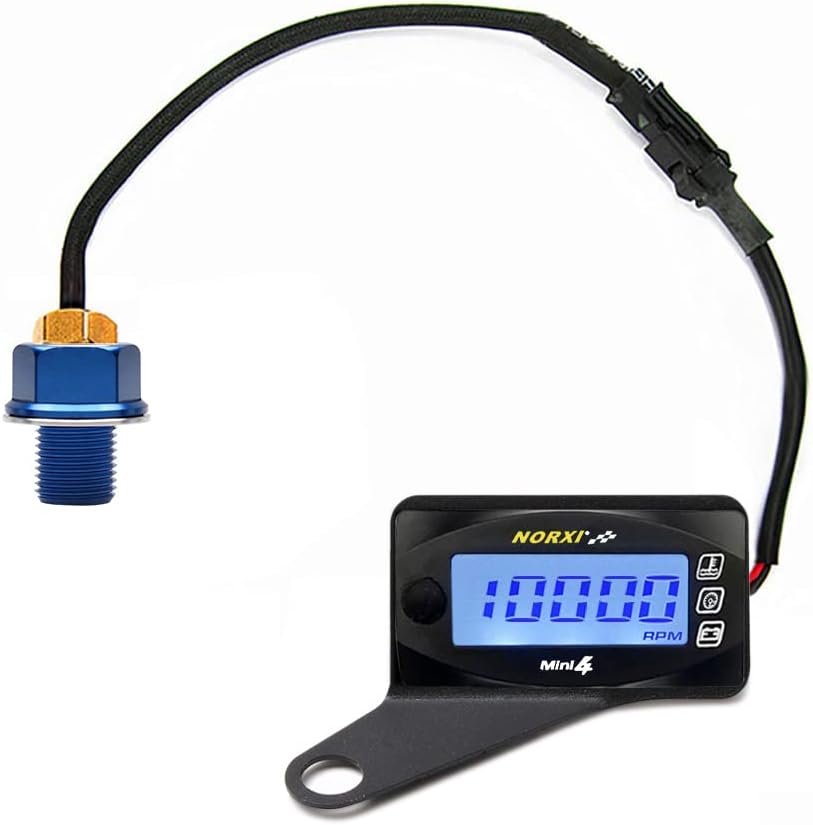

◆ Product Parameters: Item name: Universal Norxi Multi-Function Meter (4 in 1) Material: Plastic and LED(Meter) & CNC Aluminum(Adapter) Oil Thermometer display range: 0~120°C Temperature warning: When the temperature exceeds 120 °C, the meter will flash to warn you.(press the button 7 times to switch between Celsius and Fahrenheit) Adapter Diameter: M12X1.5/M14X1.5/M14X1.25/M16X1.5/M18X1.5/M20X1.0(Optional) Volt meter Display range: DC8.0~50.0V Effective voltage: DC12V Voltage warning: When the voltage is below 15.5V, the meter will flash to warn you. Tachometer Display range: 0~20000 RPM Clock Display range: 24H Meter size: 60 x 30 x 13.5 mm Weight: 0.18 kg ※ Notices: The gauge is universal, but the oil temperature adapter is not universal for all models. Please measure the thread outer diameter and thread pitch of the oil screw before ordering to ensure that our products can be used on your engine. Then refer to our adapter size chart to select the corresponding adapter, there are 5 sizes in total. ◆ Package Include : 1 X Norxi Multimeter(Mini 4) 1 X Oil Temperature Adapter 1 X Sensor line 1 X Instrument Extension Cable 1 X RPM Wire 2 x NORXI Sticker 1 x Adhesive pad 1 X Instruction Manual 2 x Terminals Here are the appropriate instructions for switching from Celsius to Fahrenheit: ※Before installing the unit into the motorcycle, 1. Connect the blue switched power source (ACC) to any 12v DC+ source. 2. Connect temperature and tach sensor wires (uninstalled). 3. Connect the black ground wire to a related 12v DX-source. While all of the LCD areas are active when the unit powers on, press the mode button seven times. The unit will then switch to Fahrenheit. 4. Connect the red constant power source to a 12v DC+ battery. 5. Properly connect and install tach and temp wiring. 6. Start the motorcycle to apply 12v+ to blue wire, and gauge will display in Fahrenheit. ※Assuming that the device is already installed, since most people will do that first, here is a simple way to change it from Celsius to Fahrenheit: 1. Disconnect the red 12v DC+ constant memory power source. 2. Wait for 10 seconds, start the motorcycle, and the gauge will light up entirely like an old calculator. When this occurs, press the mode button seven times as quickly as possible, and it will switch to Fahrenheit. 3.Reconnect the red 12vDC+source. This wire is used for the memory; however, the change from Fahrenheit to Celsius is stored regardless.
