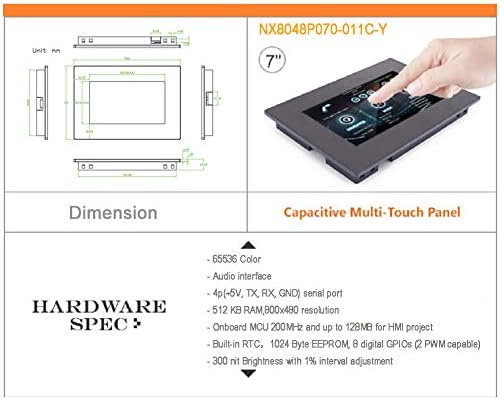

- -Compared with Basic nextion display and nextion enhanced screen, Nextion Intelligent display has more powerful hardware in terms of MCU, Flash storage and SRAM. Audio, video and animation play functions enrich your project HMI interaction.
- -Nextion intelligent 7 capacitive display is a 5V device, but many development boards are 3.3V. It won't make the display power up.
- -To ensure Nextion capacitive 7 intelligent display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
- -If you supply power for NX8048P070-011C-Y via PC, the Nextion intelligent 7 inch display may works not as expected even though your PC is 5V.

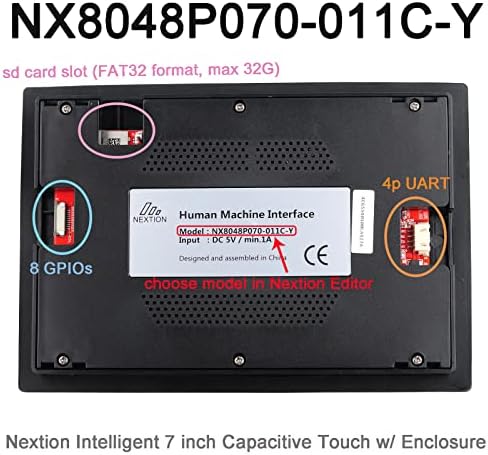

- -Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
From the brand DIYmalls Display LoRa OLED TFT SPI LCD ESP32 with Display Nextion Nerd Miner Visit the Store OLED Display Visit the Store LoRa with Display Visit the Store
Product description -Compared with Nextion Basic and Enhanced Series, Nextion Intelligent Series have more powerful hardware in terms of MCU, Flash storage and SRAM. -The audio, video and animation play functions enrich the project HMI interaction. -Nextion Intelligent supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag etc. Nextion Editor Software -Easy-to-Use Nextion HMI software -ASCII text based instructions over serial -Assignable attribute value components at runtime -Drag-and-Drop components for GUI design and interaction -User Event Code pane for GUI interaction and peripheral MCU communication (Note: If your HMI project was developed via 0.53 or prior version Nextion Editor, we recommend you to use the LTS version for project maintenance as the latest version is not fully compatible with your exsisting source code and GUI desgin.) Questions & Answers Q1: Can Nextion display be used with other MCU? A: Nextion works with many MCUs, but we only offer Library for arduino and Linux. You need to develop Lib for other MCUs, and all instructions must strictly follow Nextion Instruction Set Q2: How to upload the designed project? A: USB to TTL module, and SD card. Q3: Can Nextion read file in SD card? A: No, SD card is only used to upload TFT project file. Q4: My project is successfully made in Nextion Editor. How to get the TFT file? A: Choose HMI file in Nextion Editor -Click "Compile" and it'll show "Compile Successful!" in the bottom of software -Choose "File","TFT file output" -Click "Output" and save TFT file. Q5: Can I output the TFT file in Nextion screen? A: No Q6: I want to update my project. Why the TFT file can not be revised? A: The file in Nextion Editor is HMI, and the output one is TFT. You should edit the HMI file in software. Q7: Why Nextion Editor shows "Can not open this file (Your HMI file is made by low version Editor)? A: The project is made in old version of Nextion Editor. You need to download the newest version. Q8: The Nextion display "Model does not match" "File Infor ERROR!". How to solve it? A: The TFT file was made in another model number, you need to reselect right model number in Nextion Editor. Q9: How to upload a project via SD card? A: Prepare a SD card ( FAT32 format and less than 32GB) -Copy TFT file from PC to SD card (ensure only one TFT file in it) -Insert SD card into Nextion card slot -Power on Nextion -File uploaded automatically and displays "Update Successed!" after completed -Power off Nextion -Remove SD card -Power on and project will show on Nextion. Nextion 2.4 Basic Nextion 2.8 Enhanced Nextion 3.2 Basic Nextion 4.3 Intelligent Nextion 5 Intelligent w/Enclosure Nextion 7 Intelligent Add to Cart Buying Options Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 3 18 1 6 12 11 Price $31 90 — no data — no data $76 90 $82 90 $119 90 Model NX3224T024 NX3224K028 NX4024T032 NX4827P043-011C-Y NX8048P050-011C NX8048P070-011C Size 2.4 inch 2.8 inch 3.2 inch 4.3 inch 5.0 inch 7.0 inch Resolution 320x240 320x240 400x240 480x272 800x480 800x480 GPIOs / 8 / 8 8 8 Recommend Power DC 5V 500mA DC 5V 500mA DC 5V 500mA DC 5V 1A DC 5V 1A DC 5V 2A USB to TTL Nextion IO Adapter Nextion GPIO Expansion 400 Breadboard 2.4" ESP32 Touchscreen Add to Cart Buying Options Buying Options Add to Cart Add to Cart Customer Reviews 48 30 8 12 37 Price $7 95 — no data — no data $8 99 $20 98 Package List 1x cp2102 usb to ttl w/cable 1x io adapter 2x gpio expansion board 1 set breadboard w/accessories 1pcs ESP32-2432S024C
