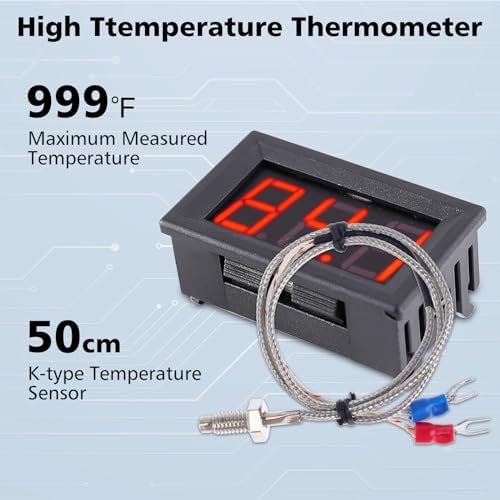

- High Temperature Measurement: The K-type thermocouple thermometer is capable of measuring temperatures ranging from -76°F to 999°F. For temperature measurements within the range of -9.9°F to 99.9°F, the minimum temperature measurement increment is 0.1°F, while for other temperature ranges, the increment is 1°F. The thermometer requires a DC power supply voltage of 4V to 28V.

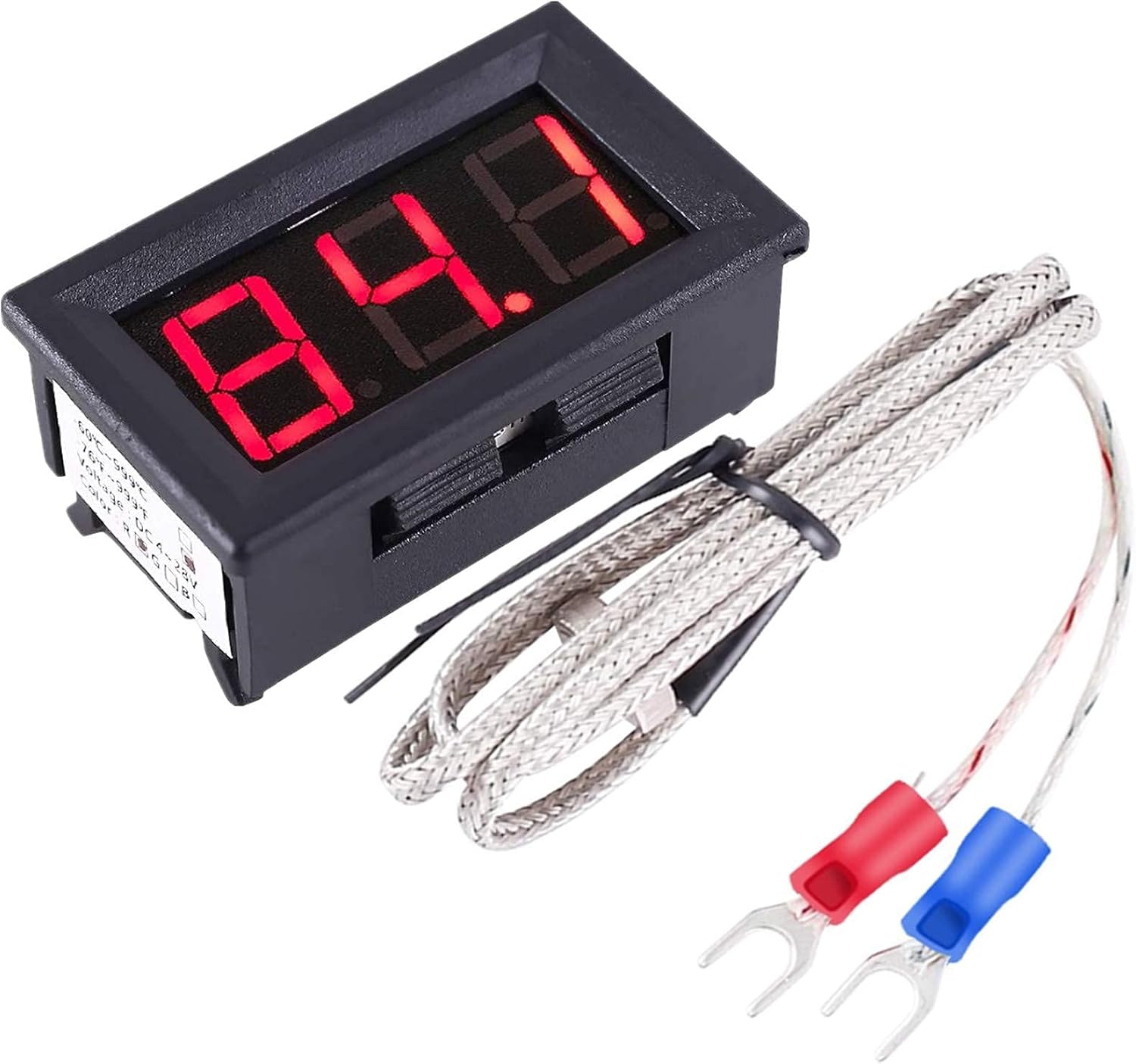

- LED Digital Display: Equipped with a LED digital display, this device boasts a larger and brighter font, which makes it effortless to observe the temperature status. Whether in dimly lit or bright environments, the display is easily visible, providing accurate readings at a glance.

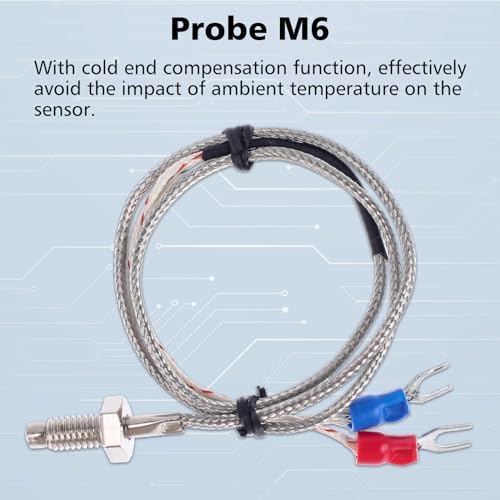

- Industrial Grade K-type Thermocouple M6 Probe: The thermometer utilizes a K-type thermocouple sensor that incorporates a cold junction compensation function, effectively minimizing the influence of ambient temperature on the sensor and resulting in highly accurate temperature measurements. However, due to the wide temperature measurement range, some measurement errors may occur, which is considered normal within a range of ±10℉/1%.
- NOTE: We highly recommend wrapping the probe with insulating tape to prevent static interference. If possible, it is better to use an insulated probe to ensure accurate temperature readings. Taking these precautions will help maintain the reliability and precision of the thermometer.
- Application: This thermometer finds wide application in industrial temperature measurement. It can be used for measuring temperature in boilers, air, liquids, and various other mediums. Its versatility and accuracy make it an essential tool for industrial and personal use alike.
Product description K-type Thermocouple Thermometer Fahrenheit thermometer Stainless steel M6 probe Red Digital LED Display High Temperature Tester Use steps 1>.Connect sensor to display screen in right terminal. 2>.Place the sensor in the correct position. 3>.Connect to power supply white socket.Pay attention to the connect direction. K-type thermocouple Features Use industrial grade K-Type sensor Red Digital LED Display Measuring temperature range is wide High precision detection Display in Fahrenheit With temperature compensation function Effectively avoids the influence of ambient temperature on the sensor, and the temperature measurement is more accurate. Sensor wire should not be connected incorrectly Power wire attention direction Temperature error rate: 1% The measurement temperature error is normal within 10℃ Parameters Product name: K-Type High Temperature Thermometer Work voltage:DC 4.0V-28V Temperature type:Fahrenheit Measure range:-76F~999F LED Display:Red 3Bit Length of sensor:0.5meter Probe thread:M6 Size for display:48*29*25mm Measurement accuracy:1F(It is 0.1F when temperature is -9.9~99.9F) Package: 1pcs K-Type High Temperature Thermometer 1pcs K-Type Thermocouple 1pcs 15cm 2P XH2.54-2P Cable M6 K type thermocouple temperature sensor high temperature probe 0.5M K-type thermocouple Metal shielded wire, more durable Threaded probe, easy to install Firm wiring nose, not easy to fall off The sensor probe uses a moderate length stainless steel protective outer cover which is shrink-wrapped to wires at the display side and terminates into the probe at the sensor side. The sensor/probe has a threaded sleeve that permits a solid contact to the material being measured, being this way a person would be able to glue a bolt to the contact area and thread the sensor into that until the probe made contact. Oven Temperature Detection Home Temperature Detection Vegetable Cultivation Industrial Temperature Measurement Application Vegetable cultivation Production workshop Industrial temperature measurement Measurement of temperature in the life Applied to the measurement of boilers, air, liquids, etc It can be embedded in an instrument to measure certain specific temperatures
