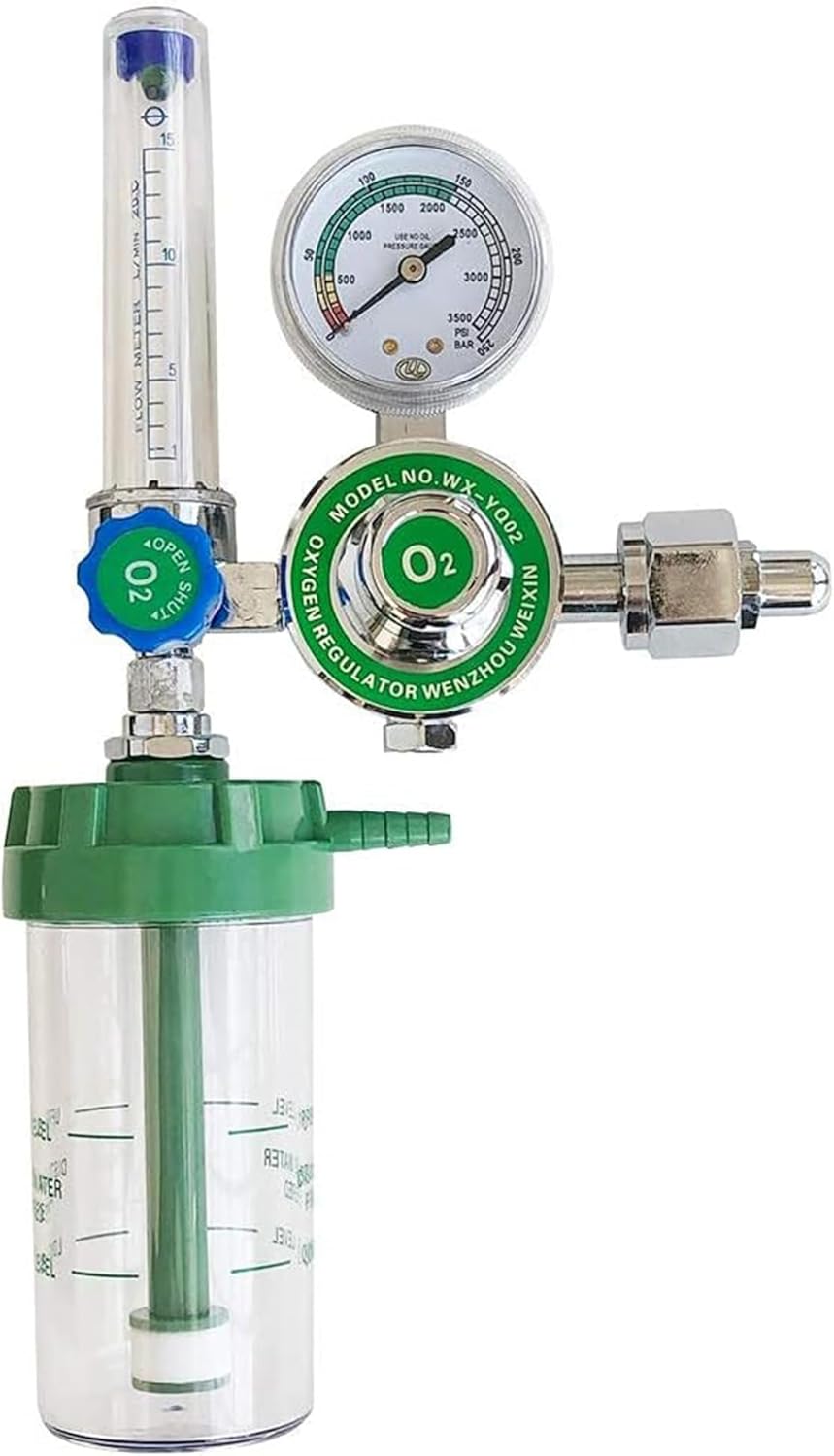

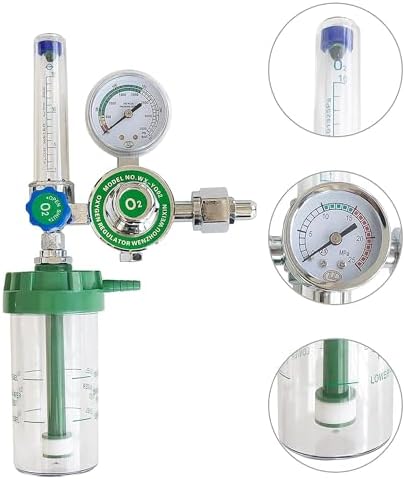

- It is mainly used in the oxygen supply system, which is used by emergency oxygen and oxygen inhalation; it can also used in the flow control devices of scientific research institutions, industrial, mining and other inhalation
- Pressure Reducing Valve: The theme of the pressure reducing valve made of brass, high toughness, wear resistance, corrosion resistance, better sealing safety
- Fine Pressure Gauge: the pressure gauge is made of high quality glass, thick and anti-fall design, clear scale and high sensitivity
- Gas Filter: double protection, more energy efficient, more economical, safer to use; Precision machining is used to ensure the machining accuracy of each part

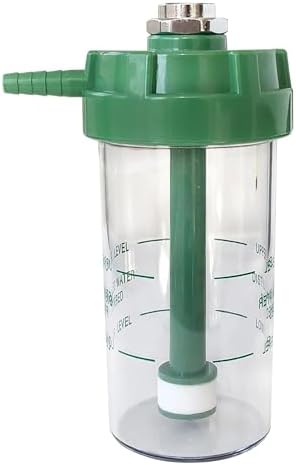

- Tide Bottle: Removable and washable, more hygienic. Built-in filter to prevent impurities from entering
Product description Oxygen Inhalator Instruction Oxygen Inhalator is mainly used in the oxygen supply system 1、Mainly component name(Pleasesee overleaf) 2、Mainly function: 2-1.Oxygen flow range:1~10L/Min 1~15L/Min 2-2.Pressure reducing range:2.0~3.0kg 2-3.Relief valve Pressure range:(3.5kg±0.5kg) 3、Appliance introduction: 3-1.Before using, please fill pour clear water into moisture bottle about one third reaching water line site. 3-2.DF-2 blind nut straw into bolt head, make the pipe of flow meter square water line. 3-3.Put off regulator(9),put on oxygen tube switch, so you will the data from needle position of pressure gauge(2).At last, straw flow on/off at anti clockwise according to need, adjust switch. 3-4.If you need oxygen for a long time,can use the pipe to help absorb oxygen. 3-5.Moisture bottle(20) circles at clockwise,adjust(17) oxygen hole to other site. 4、Attention point 4-1.Before using the suction, you will check all parts bad or good and clean it by drying cloth. 4-2.Pressure gauge(2),regulator(3) no oil, otherwise explode 4-3.Clearwater in moisture bottle keeps clean 4-4.There is adjustable nut(6) in the front of plunder shall be straw at clockwise. 4-5. Relief value(7)(15) keeps out of danger. 4-6.After using suction, put off the oxygen tube switch, make rest oxygen out, pressure gage to zero site,last put off flow switch if using again, first put on the oxygen tube switch,avoidexploding 4-7.The product must be examined periodical, at least once every 6 month Specifications: Product name: Buoy type oxygen inhaler Input pressure: <15Mpa Output pressure: 0.25Mpa Flow adjustment range: 1-10L/min Safety valve: 0.5Mpa automatic exhaust Imported thread: G5/8'' Export thread: M12x1 With humidification bottle device Working principle： This product is to provide a constant pressure and flow. The oxygen inhaler uses its own decompression device to reduce the high pressure(the pressure when the bottle is filled is 15Mpa) to the low pressure suitable(0.2~0.2Mpa), and then output to the wetted water. Since the input pressure of the wall-mounted oxygen inhaler is 0.2~0.4Mpa, it can be directly output without decompression. Method of operation： 1. Add distilled water to the humidification cup. The water level in the bottle cannot be higher than the upper water line, but not lower than the lower water line. 2. Before inserting the inhaler into the oxygen supply terminal socket, please turn off the flow adjustment switch and adjust the direction of the oxygen quick plug, and then insert the quick plug into the oxygen supply terminal socket. When you hear a "click" sound and see the oxygen supply terminal, when the locking sleeve of the socket slides automatically, it means that the quick plug and the oxygen supply terminal socket are connected and locked. 3. Before supplying oxygen, insert the oxygen suction pipe into the oxygen supply connector, and then turn the flow adjustment switch counterclockwise to open the origin, so that the float rises slowly (the scale line aligned with the center of the float is the flow reading, and the unit is liters/ Minutes),the oxygen supply can be adjusted according to needs. Package list: 1 * Oxygen inhaler 1 * Nasal tube Note: 1. Please allow slight error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. Component Name: 1. Flow meter 2. Pressure Gauge 3. Pressure Reducing 4.(DF-2blind Nut)G5/8G 7/8 CGA540 5.Gas Filter Unit Inside 6.Pressure Reducing Plunger System 6.1 Spring 6.2 O Model Circle(ф6x1.9) 6.3 O Model Circle(+22x24) 6.4 Gas Hole 7. Relief Value 8. Flow meter Buoy 9. Flow Switch Dump Iron 10.Dump Iron Component Name: 11.O ModelCircle(ф15x2.4) 12.Gas Pipe Dump Iron 13.O Model Circle(ф15x2.4) 14.O Model Circle(ф22x2.4) 15.Relief Value 16.Gasket 17.Oxygen Hole 18.A Bind Nut 19.O Model Circle(ф60x3.5) 20.Moisture Bottle 21.Gas Pipe 22. -Water Line- 23.Filter YH.YX11A Buoy Type Oxygen Inhalator Female Thread and Tube WX-YQ01 Buoy Type Oxygen Inhalator Female Thread and Tube WX-YQ01 Buoy Type Oxygen Inhalator Male Thread and Tube WX-YQ02 Buoy Type Oxygen Inhalator Female Thread and Tube WX-YQ 02 Buoy Type Oxygen Inhalator Male Thread and Tube Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 206 54 13 151 32 Price $29 99 $31 99 $56 99 $36 99 $34 99 Male Thread no data no data ✓ no data ✓ Female Thread ✓ ✓ no data ✓ no data no data no data no data no data
