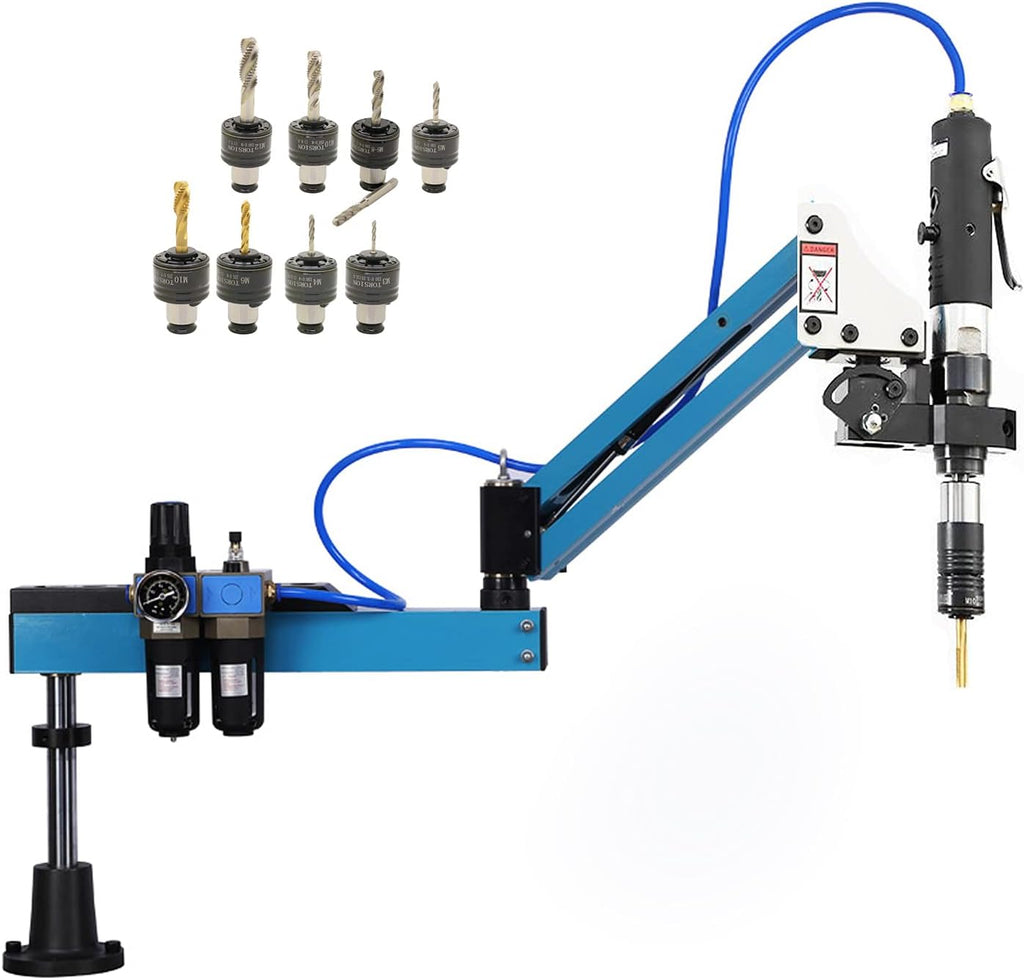

- Premium Quality - the pneumatic tapping machine, not electric but only air powered, adopts high strength, aluminum alloy, strong hardness, high efficiency, stable performance, simplified operation.
- Overload Protection - our pneumatic air tapper has the clamping cylinder with overload protection device, when the tapping torque exceeds the rated torque, the adjustable safety clutch is separated to avoid tap damage.

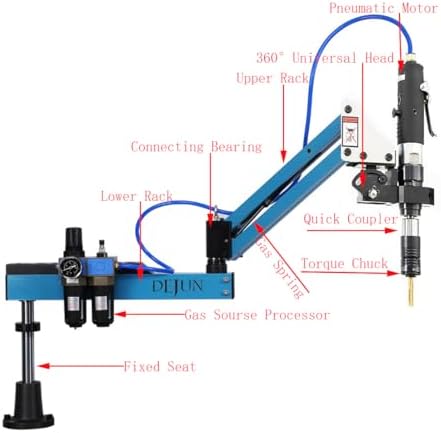

- High Configuration - strong power pneumatic motor, 400rpm/min; oil-water separator separates the oil and water from the air to ensure the normal operation; the folding arm can rotate 360°on the workbench and tap vertically, 1000mm working radius.
- Applicable Fields - suitable for all machinery manufacturing industries, mold/plastic/printing machinery, packaging machinery factories, engineering machinery, automobile and motorcycle parts, aviation engines, rolling stock and other general machinery industries.
- Applicable Materials - can be used for copper, iron, aluminum, steel, stainless steel, plastic, wood and other materials.

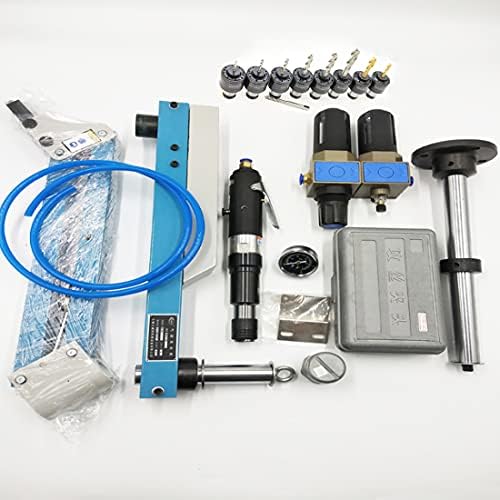

Notes: Please kindly know that this Pneumatic Tapping Machine is not electric, it's only Air Powered There are totally 8 collets (with 9 taps) equipped, 6 ISO Standard collets and 2 JIS Standard collets. In ISO Standard, the M6 collet is the same with M8, so only one collet of them is attached with, but came with 2 taps that can be used on M6 and M8 respectively. Specifications: Material: high-strength aluminum alloy Tapping Range: M3-M12 The Number of the Tap Collets Equipped: 8pcs(with 9 Taps) The Size of 6 Tap Collets in ISO Standard： M3 tap：3.15 X 2.5 M4 tap: 4 X 3.15 M5 tap：5 X 4 M6(M8) tap：6.3 X 5 M10 tap：8 X 6.3 M12 tap：9 X 7.1 The Size of 2 Tap Collets in JIS Standard： M6 tap: 6.0 X 4.5 M10 tap: 7.0 X 5.5 No-load Speed: 400rpm Working Radius: 1000mm Spindle Working Type: vertical Tapping angle: universal Working Pressure: 6-8kg Weight: 16kg Package Included: 1 x Pneumatic Spindle 1 x Tapping Machine Folding Arm 1 x Pneumatic Motor 1 x Upper Bracket Assembly 1 x Lower Bracket Assembly 1 x Fixed Seat Assembly 1 x Gas Source Processor M3-M12 Tap Collets with 9 Taps 1 x Air Tube 1 x User Manual
